4.5 sec

 0-2500rpm

                     500

ECU processes per second

             160cc

Variable piston motor

 M60-S

The Mastodon model M60-S Forestry Mulcher is designed to provide commercial land clearing professionals the ultimate edge in mulching performance.  Inside the compact frame of the M60-S is a massive 160cc variable hydraulic motor controlled by E-TECH Smartdrive. An exclusive ECU controlled power management system. The head produces up 780 ft-lbs of tree shredding torque with a maximum rotor speed of 2500RPM. The industry's most powerful drive line is unleashed on vegetation with the new Mastodon feed control carbide tooth which provides the cutting performance of sharp steel with the maintenance-free longevity of carbide.



Spec for spec there is no substitute for a Mastodon Mulcher.  A Mastodon works faster, stronger, and smarter crushing the competition and dominating the world of high performance land clearing.

We Welcome Challengers

160CC OF PURE MULCHING POWER

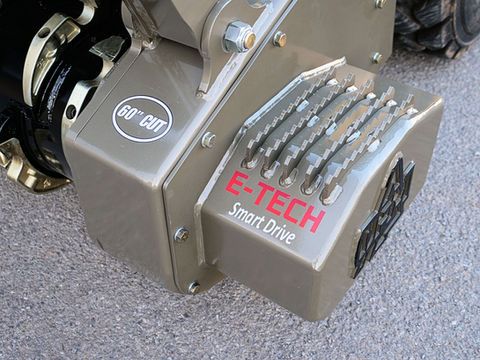

 E-TECH is an ECU smart drive that monitors and adapts the variable piston motor for optimum performance on any machine. The ECU housing is IP69K rated passing the highest standards in durability and elemental protection.  This system accelerates the rotor to a top speed of 2500rpms on any machine regardless of hydraulic flow.

BLUETOOTH TUNING

E-TECH allows the mulcher to be tuned to any machine in seconds using Bluetooth and a simple smart phone app. The app has a digital flow reading function that tests and displays the skid loaders flow, the operator can then use the in-app GPM picker to instantly tune the mulcher. This allows the head to be switched between multiple machines with zero downtime.

E-TECH tuning is 100% accurate and superior to a factory in field technician.

              Highlights:

  • Tracks Total Mulcher Hours

  • Built-in flow test function

  • No down time switching between machines

  • No technician required

  • 100% accurate

  • Bluetooth enabled

  • Easy to use smart phone app

  • 160cc power on any flow.

  • Lift Assist

Optional In Cab Monitor

Easy to Read Info Screen

The Mastodon M60-S has an optional in cab monitor with touch screen controls. This allows operators real time feed back of every vital mulcher parameter including RPM's, pressure, heat, unit hours and consumable life.

 Screen Controlled Tuning

The Mastodon in cab monitor has a touchscreen interface that allows the operator to tune the mulcher from the cab. A built-in digital pressure and flow reader can test the skid steer accurately to 1 tenth of a GPM.

Power Optimizer

The E-TECH in cab monitor boasts a number of technical features to increase operator productivity including a power optimizer gauge. The power optimizer combines the ideal attachment pressure with the ideal attachment rpms to provide a truly intuitive operating experience.

Built-in Job Meter

The E-TECH smart drive comes comes with an exclusive hour logging feature that not only tracks the total attachment hours for better resale, it also has a job hour function that provides operators with a easy way to track job progress.

Tooth Life Tracker

The E-TECH smart drive in cab monitor comes with a resettable tooth life counter function that gives operators a quick  reference on  the estimated number of hours left on the cutting tools.

In-Cab Touchscreen Controller

 CUTTING SYSTEM

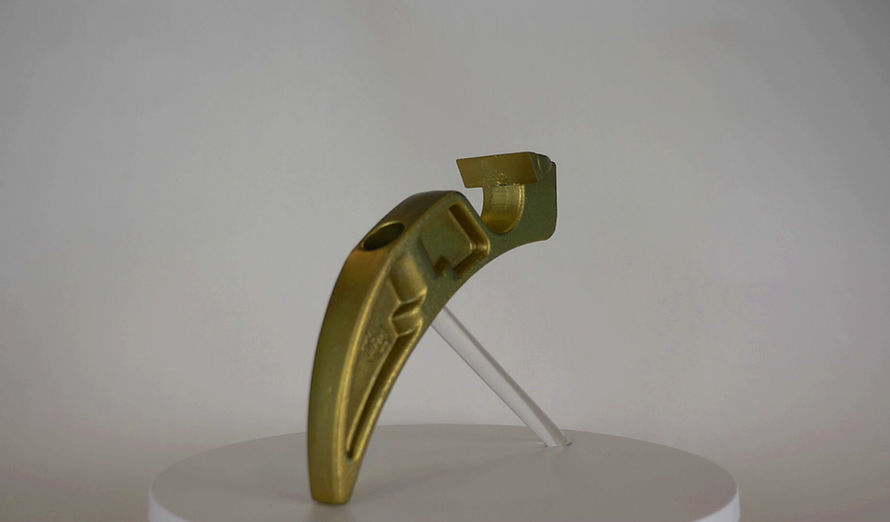

Mastodon Mulchers come equipped with patented feed control cutting technology. Each tool acts as an independent feed control system  that controls the feed rate and greatly reduces stalling the rotor.  Allowing a Mastodon head to achieve sharp steel performance with the strength and longevity of carbide.

Each Mastodon cutting tooth has a feed control feature,

a deep gullet feature for maximum chip storage

and an engineered carbide cutting feature.

This provides ultra fast mulching speeds while consistently producing high quality finish material.

The Mastodon cutting system is available with high production carbide for high speed mulching or hammer carbide for enhanced durability in rocky conditions

The patented bite limiting tooth used in the mastodon system keeps the rotor weight to a minimal, allowing for the fastest recovery times in the industry.

THE INDUSTRY'S MOST ROBUST DRIVETRAIN

The Mastodon M60-S features an exclusive direct drive train that puts all available power to the rotor providing instant torque and delivering superior mulching performance. By using a direct drive train the M60-F eliminates all the wear prone moving parts associated with belt drive systems ensuring lasting reliability in applications where high stress and extended  work cycles will be seen

Two 150mm bearings support the rotor protecting the entire drive system from lateral and radial shock loads associated with forestry mulching.

PHOTO GALLERY

Specifications:

Cutting width:

Required Horsepower:

Motor displacement:

Number of Carbides:

Weight:

Trees Size:

Rotor RPM:

Rotor spool up:

Rotor stop time:

In cab monitor:

Price:

 M60-S

 60"

75hp-160hp

160cc

30

2250lbs

 1-15"+

2500rpm

4-7 seconds

3-4 seconds

$2,500.00

$34,500.00
